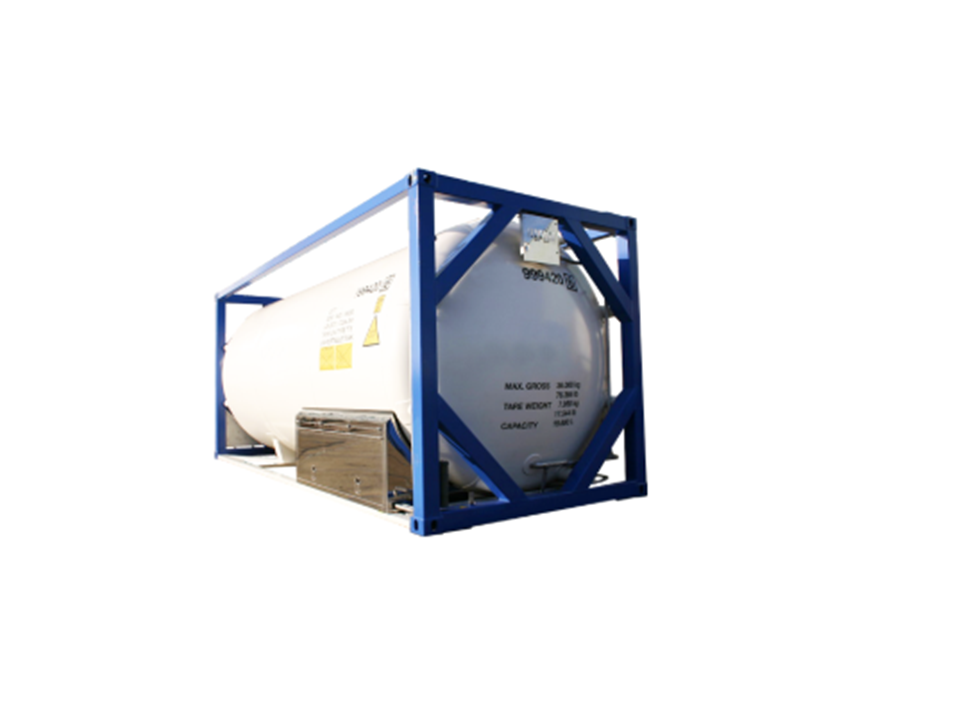

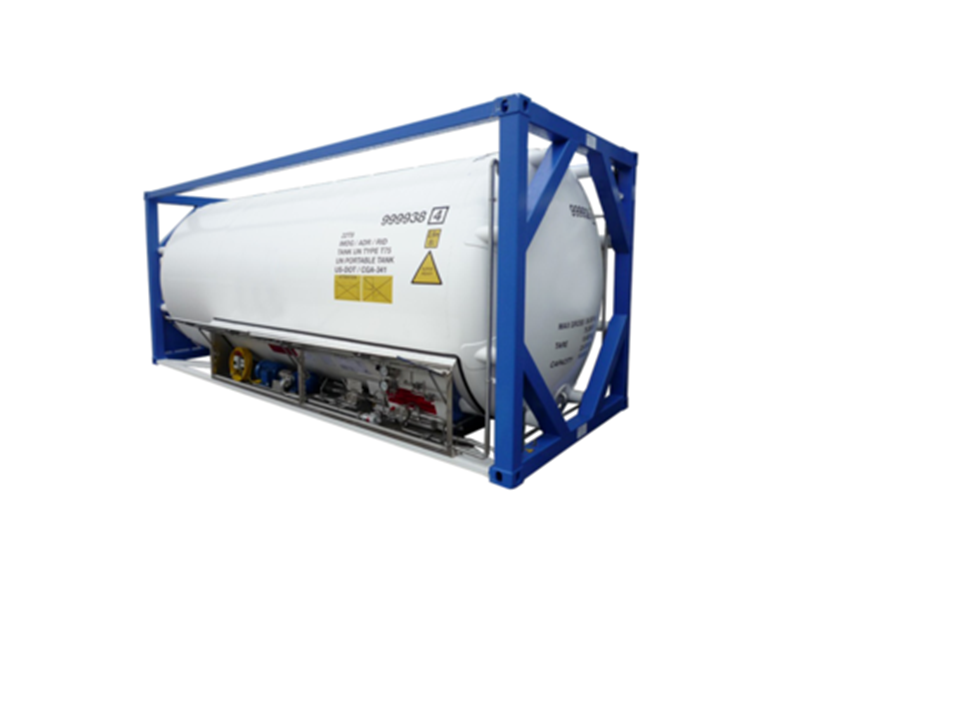

Tank containers
- Capacity: 8,000 to 54,000 litres
- ISO-dimensions: overall length 10′, 20′, 30′, 40′ and 45′ as well as swap model
- Medium: LIN (Nitrogen), LOX (Oxygen), LAr (Argon), CO2 (Carbon dioxide), N2O Nitrous Oxide, LNG (CH4 Methane), C2H4 (Ethylene), C2H6 (Ethane)
- Type: UN T75, ADR and IMO 8
- Design Pressure: 150, 250, 320 psig and on request
- Design Regulations: IMDG/ADR/RID/TIR/CSC/US-DOT/CGA 341 / DNV / TPED
- Design Codes: on request; ASME, Section VIII , Div. 1 & Div. 2 and/or AD-2000, EN 13530
- Approvals: IMDG, ADR, RID, CSC, US‐DOT, CGA 341, TIR, DNV 2.7-1
- Inspection agency: Bureau Veritas, Lloyd’s, SGS, DNV (other agencies on request)
- Insulation: multi-layer with vacuum
- Frame construction: beam type
- Special transport equipment
- In addition to the standardised equipment, we can also provide more dedicated transport equipment, e.g. equipment with pump, vaporizer, flow measure equipment, bottle filling facility, high pressure reciprocating pump etc.
